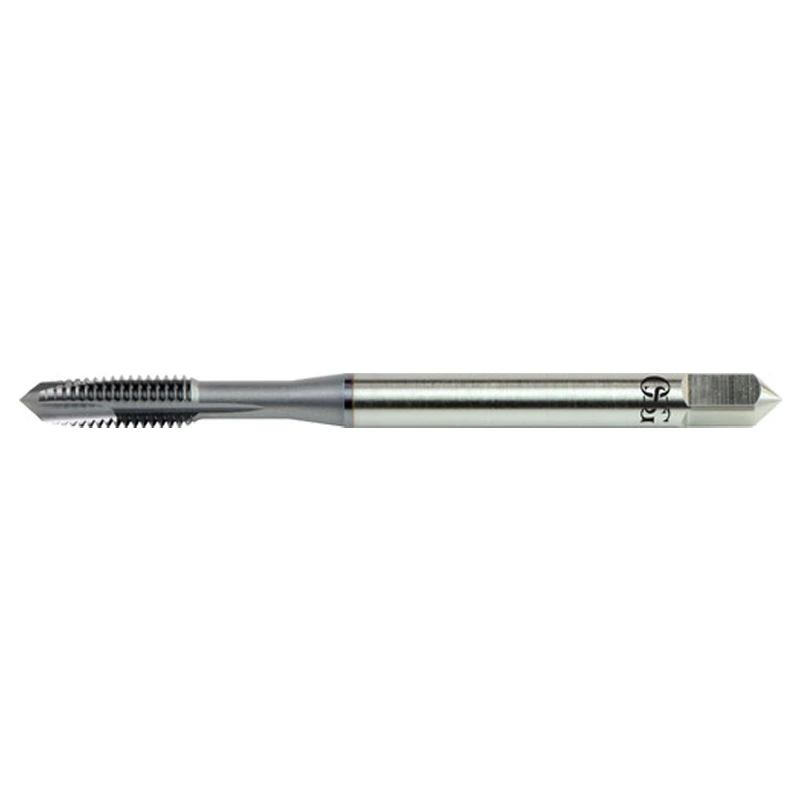

7/16-14 H5 3S/P PLUG HY-PRO AL DIN - Spiral Point Hy-Pro AL DIN (Inch)

7/16-14 H5 3S/P PLUG HY-PRO AL DIN – Spiral Point Hy-Pro AL DIN (Inch)

SKU: 1101601703

$26.03

Explore Tap STORE

PRODUCT DETAILS

List Number: 11016
Class of Fit: 2B-3B
Tap Style: Spiral Point
Number of Flutes: 3
Material: Vanadium High Speed Steel
Shank Type: Square
Finish / Coating: Nitride
Shank Diameter: 21/64 in
Chamfer Type: Plug
Square Length: 0.242 in
Thread Direction: Right Hand
Square Width: 0.242 in
Thread Standard: UNC
Thread Size: 7/16″-14
Drill Bit Size: U
Thread Length: 55/64 in
Coolant Fed: Non-Coolant Through
Overall Length: 3-15/16 in
Tap Application: Through Hole

MATERIALS

Aluminum, Aluminum 6061, Aluminum 7075, Aluminum Casting

PRODUCT DETAILS

List Number: 11016
Tap Style: Spiral Point
Material: Vanadium High Speed Steel
Finish / Coating: Nitride
Chamfer Type: Plug
Thread Direction: Right Hand
Thread Standard: UNC
Thread Size: 7/16″-14
Thread Length: 55/64 in
Overall Length: 3-15/16 in
Number of Flutes: 3
Class of Fit: 2B-3B
Shank Type: Square
Shank Diameter: 21/64 in
Square Length: 0.242 in
Square Width: 0.242 in
Drill Bit Size: U
Coolant Fed: Non-Coolant Through
Tap Application: Through Hole

MATERIALS

Aluminum, Aluminum 6061, Aluminum 7075, Aluminum Casting
