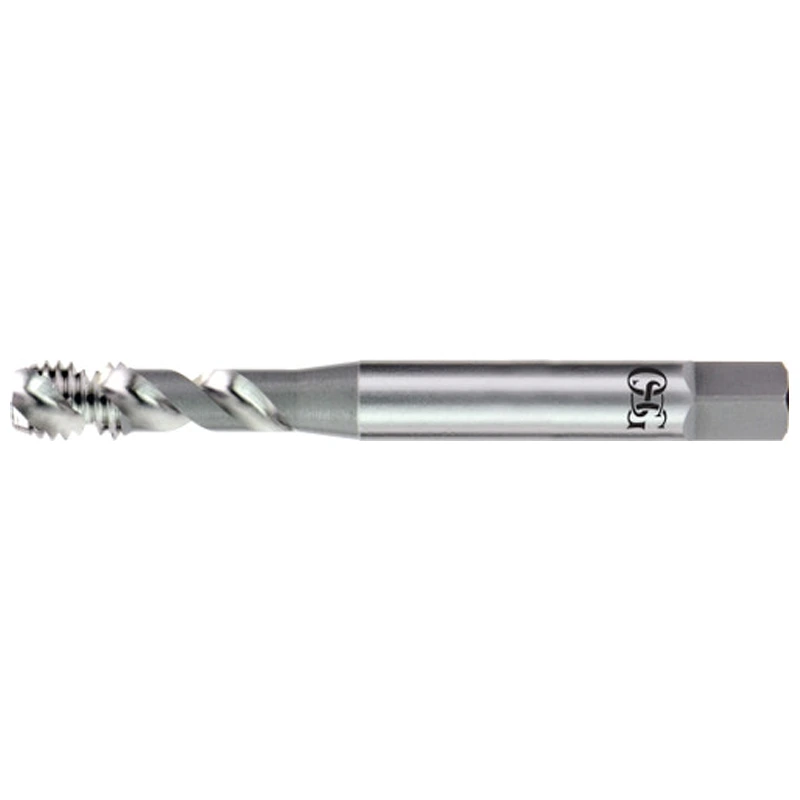

3/8-16 H5 3FX MOD-BOTT HY-PRO AL DIN NITRIDE - Spiral Flute Hy-Pro AL (Inch)

3/8-16 H5 3FX MOD-BOTT HY-PRO AL DIN NITRIDE – Spiral Flute Hy-Pro AL (Inch)

SKU: 1301901403

$32.33

Explore Tap STORE

PRODUCT DETAILS

List Number: 13019
Tap Style: Spiral Flute
Number of Flutes: 3
Material: High Speed Steel
Shank Type: Straight
Finish / Coating: Black Oxide
Shank Diameter: 3/8 in
Chamfer Type: Modified Bottoming
Square Length: 0.285 in
Thread Direction: Right Hand
Square Width: 0.285 in
Thread Standard: UNC
Helix Angle: 50°
Thread Size: 3/8″-16
Drill Bit Size: 5/16 in
Thread Length: 1/2 in
Coolant Fed: Non-Coolant Through
Overall Length: 3-15/16 in

MATERIALS

Aluminum, Aluminum 6061, Aluminum 7075, Aluminum Casting

PRODUCT DETAILS

List Number: 13019
Tap Style: Spiral Flute
Material: High Speed Steel
Finish / Coating: Black Oxide
Chamfer Type: Modified Bottoming
Thread Direction: Right Hand
Thread Standard: UNC
Thread Size: 3/8″-16
Thread Length: 1/2 in
Overall Length: 3-15/16 in
Number of Flutes: 3
Shank Type: Straight
Shank Diameter: 3/8 in
Square Length: 0.285 in
Square Width: 0.285 in
Helix Angle: 50°
Drill Bit Size: 5/16 in
Coolant Fed: Non-Coolant Through

MATERIALS

Aluminum, Aluminum 6061, Aluminum 7075, Aluminum Casting
