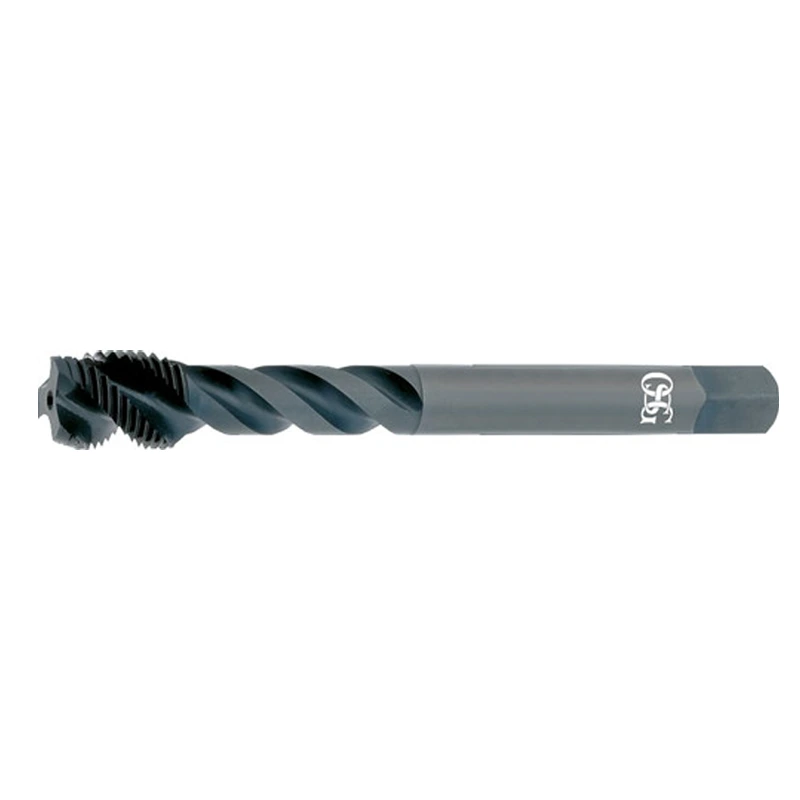

11/8-8 2B 4FX MOD-BOTT HY-PRO DIN S/O - Spiral Flute Hy-Pro DIN (Inch)

11/8-8 2B 4FX MOD-BOTT HY-PRO DIN S/O – Spiral Flute Hy-Pro DIN (Inch)

SKU: 2247601

$395.92

Explore Tap STORE

PRODUCT DETAILS

List Number: 220
Class of Fit: 2B
Tap Style: Spiral Flute
Number of Flutes: 4
Material: Vanadium High Speed Steel
Shank Type: Square
Finish / Coating: Black Oxide
Shank Diameter: 57/64 in
Chamfer Type: Modified Bottoming
Square Length: 0.875 in
Thread Direction: Right Hand
Square Width: 0.672 in
Thread Standard: UNF
Helix Angle: 45 °
Thread Size: 1-1/8″-8
Drill Bit Size: 1 in
Thread Length: 1-9/64 in
Coolant Fed: Non-Coolant Through
Overall Length: 7-5/64 in
Tap Application: Blind Hole

MATERIALS

Carbon Steels, Low Carbon Steels, Medium Carbon Steels, High Carbon Steels, Alloy Steels, Alloy Steels 4140, Alloy Steels 4340, Die Steels, Stainless Steels, Stainless Steels 300, Stainless Steels 400, Stainless Steels 17-4 PH, Cast Iron, Harden Steels, Harden Steels ~35 HRC

PRODUCT DETAILS

List Number: 220
Tap Style: Spiral Flute
Material: Vanadium High Speed Steel
Finish / Coating: Black Oxide
Chamfer Type: Modified Bottoming
Thread Direction: Right Hand
Thread Standard: UNF
Thread Size: 1-1/8″-8
Thread Length: 1-9/64 in
Overall Length: 7-5/64 in
Number of Flutes: 4
Class of Fit: 2B
Shank Type: Square
Shank Diameter: 57/64 in
Square Length: 0.875 in
Square Width: 0.672 in
Helix Angle: 45 °
Drill Bit Size: 1 in
Coolant Fed: Non-Coolant Through
Tap Application: Blind Hole

MATERIALS

Carbon Steels, Low Carbon Steels, Medium Carbon Steels, High Carbon Steels, Alloy Steels, Alloy Steels 4140, Alloy Steels 4340, Die Steels, Stainless Steels, Stainless Steels 300, Stainless Steels 400, Stainless Steels 17-4 PH, Cast Iron, Harden Steels, Harden Steels ~35 HRC
