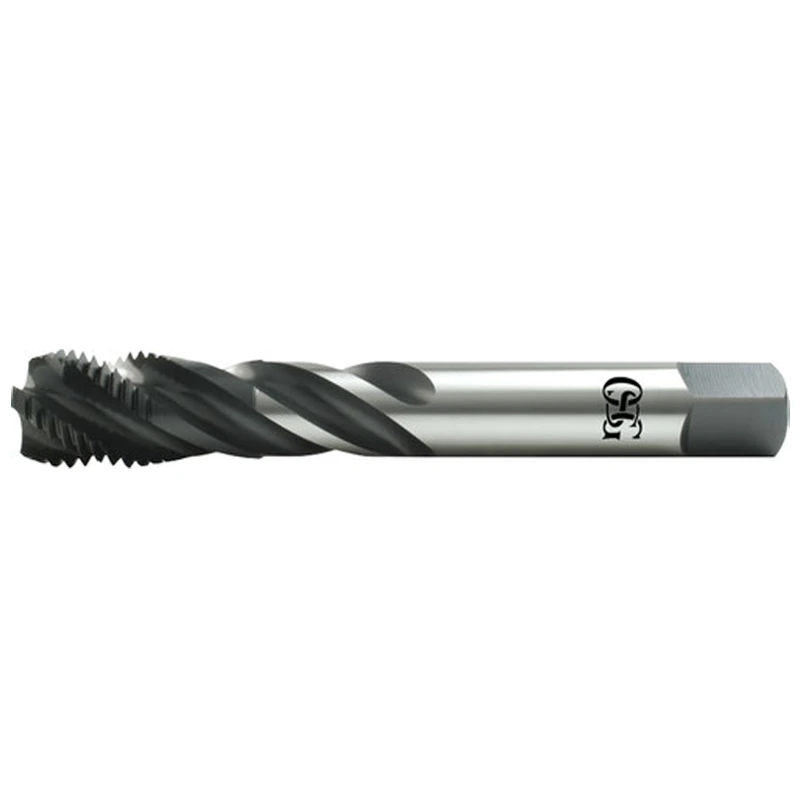

1-1/4"-7 UNC 2B 5FL 2.5P HY-PRO DIN VXL S/O - Spiral Flute Hy-Pro VXL (Inch)

1-1/4″-7 UNC 2B 5FL 2.5P HY-PRO DIN VXL S/O – Spiral Flute Hy-Pro VXL (Inch)

SKU: 1301501201

$324.85

Explore Tap STORE

PRODUCT DETAILS

List Number: 13015
Class of Fit: 2B
Tap Style: Spiral Flute
Number of Flutes: 5
Material: High Speed Steel
Shank Type: Straight
Finish / Coating: Black Oxide
Shank Diameter: 1-1/64 in
Chamfer Type: Modified Bottoming
Square Length: 0.766 in
Thread Direction: Right Hand
Square Width: 0.766 in
Thread Standard: UNC
Helix Angle: 45 °
Thread Size: 1-1/4″-7
Drill Bit Size: 1-7/64 in
Thread Length: 1-9/64 in
Coolant Fed: Non-Coolant Through
Overall Length: 7-5/64 in

MATERIALS

Carbon Steels, Low Carbon Steels, Medium Carbon Steels, High Carbon Steels, Alloy Steels, Alloy Steels 4140, Alloy Steels 4340, Die Steels, Stainless Steels, Stainless Steels 300, Stainless Steels 400, Stainless Steels 17-4 PH, Cast Iron, Harden Steels, Harden Steels ~35 HRC, Harden Steels 35 – 45 HRC

PRODUCT DETAILS

List Number: 13015
Tap Style: Spiral Flute
Material: High Speed Steel
Finish / Coating: Black Oxide
Chamfer Type: Modified Bottoming
Thread Direction: Right Hand
Thread Standard: UNC
Thread Size: 1-1/4″-7
Thread Length: 1-9/64 in
Overall Length: 7-5/64 in
Number of Flutes: 5
Class of Fit: 2B
Shank Type: Straight
Shank Diameter: 1-1/64 in
Square Length: 0.766 in
Square Width: 0.766 in
Helix Angle: 45 °
Drill Bit Size: 1-7/64 in
Coolant Fed: Non-Coolant Through

MATERIALS

Carbon Steels, Low Carbon Steels, Medium Carbon Steels, High Carbon Steels, Alloy Steels, Alloy Steels 4140, Alloy Steels 4340, Die Steels, Stainless Steels, Stainless Steels 300, Stainless Steels 400, Stainless Steels 17-4 PH, Cast Iron, Harden Steels, Harden Steels ~35 HRC, Harden Steels 35 – 45 HRC
